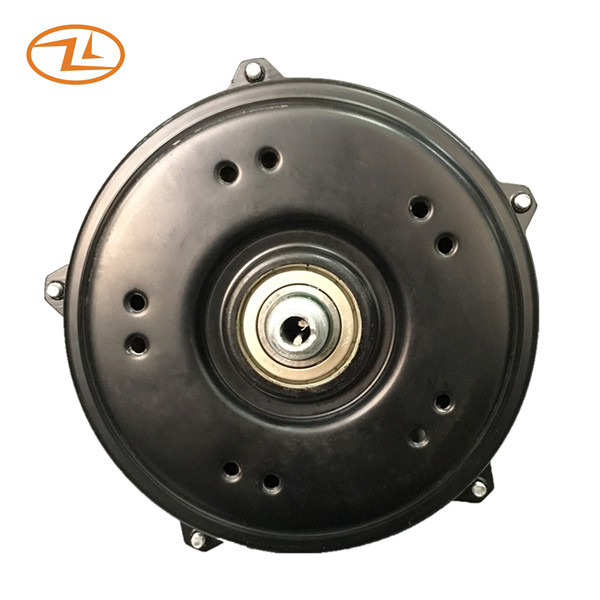

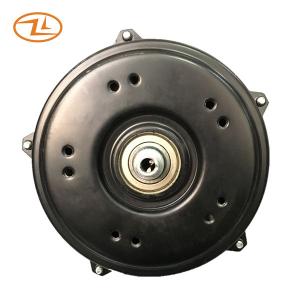

Name: 120V 40W 72 inch EC Ceiling Fan Motors PWM Control Low Speed
Brand: Zhaoli
Price: 1 USD

Brand Name : Zhaoli

Model Number : 168

Certification : CE, ROHS, REACH

Place of Origin : China

MOQ : 1000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1,000pcs per day

Delivery Time : 25-45 days

Packaging Details : cartons + pallets

Name : BLDC Ceiling fan motor

Rated voltage : 120VAC

Stack size : φ168mm

Number of poles : Eight poles

Number of phases : three phase

Bearing : Ball bearings

Construction : Outer rotor

Control type : PWM

Output signal : FG

Rectifying method : electronices

Packing : Customized packing

Printing : Customized printing

Anicilary : Emitter and signal Receiver

Application : BLDC Ceiling fan

Contact Now

BLDC Ceiling Fan Motor For 72inch Ceiling Fan 120VAC 40W Low Noise Low Speed

This motor is also called EC motor. No transformer need. The motor controller functions as "AC to DC" and supply DC power to motor.

Model	Output signal	Control type PWM/ voltage	Bearing type Ball/sleeve bearing	Rated voltage VDC	Operating voltage VDC	Rated current A	Rated input power W	Speed RPM	Load Ceiling fan	Life hours
D9T92H4B-	/	PWM	Ball bearing	24	16~26.4	0.8	19.2	230	42inch 3 blades	30,000
E9T92HBB-	/	PWM	Ball bearing	240	160~270	0.2	30	200	48inch 3 blades	30,000
EBTD0MBB01	-FG	PWM	Ball bearing	240	160~270	0.23	30	200	52inch 3 blades	30,000
EBTD0LAB01	-FG	PWM	Ball bearing	120	90~150	0.35	35	170	56inch 3 blades	30,000

Model	Output signal	Control type PWM/ voltage	Bearing type Ball/sleeve bearing	Rated voltage VDC	Operating voltage VDC	Rated input power W	Speed RPM	Load Ceiling fan	Life hours
EBTF0MBB01	-FG	PWM	Ball bearing	240	100~240	60~100	100~120	90inch~120inch blades	30,000
EBTF0LAB01	-FG	PWM	Ball bearing	240	160~270	35	100	68inch 3 blades	30,000
EBTF0LAB02	-FG	PWM	Ball bearing	120	90~150	40	120	72inch 3 blades	30,000
EBTF0LBB03	-FG	PWM	Ball bearing	240	160~270	300	120	2.8M 4 blades	30,000

Drawing:

120V 40W 72 inch EC Ceiling Fan Motors PWM Control Low Speed

Application: Industrial Ceiling fan

120V 40W 72 inch EC Ceiling Fan Motors PWM Control Low Speed
